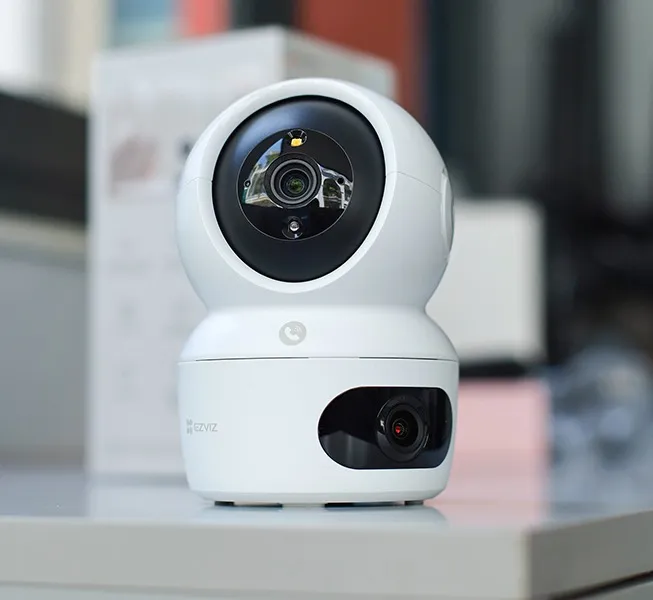

EZVIZ H7c Dual-Lens Pan & Tilt Wi-Fi Camera
Product # : 1133
|
|
|---|---|
| Model | CS-H7c-R100-8G44WF |
|
|
| Resolution | Dual 2K+ Resolution |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |

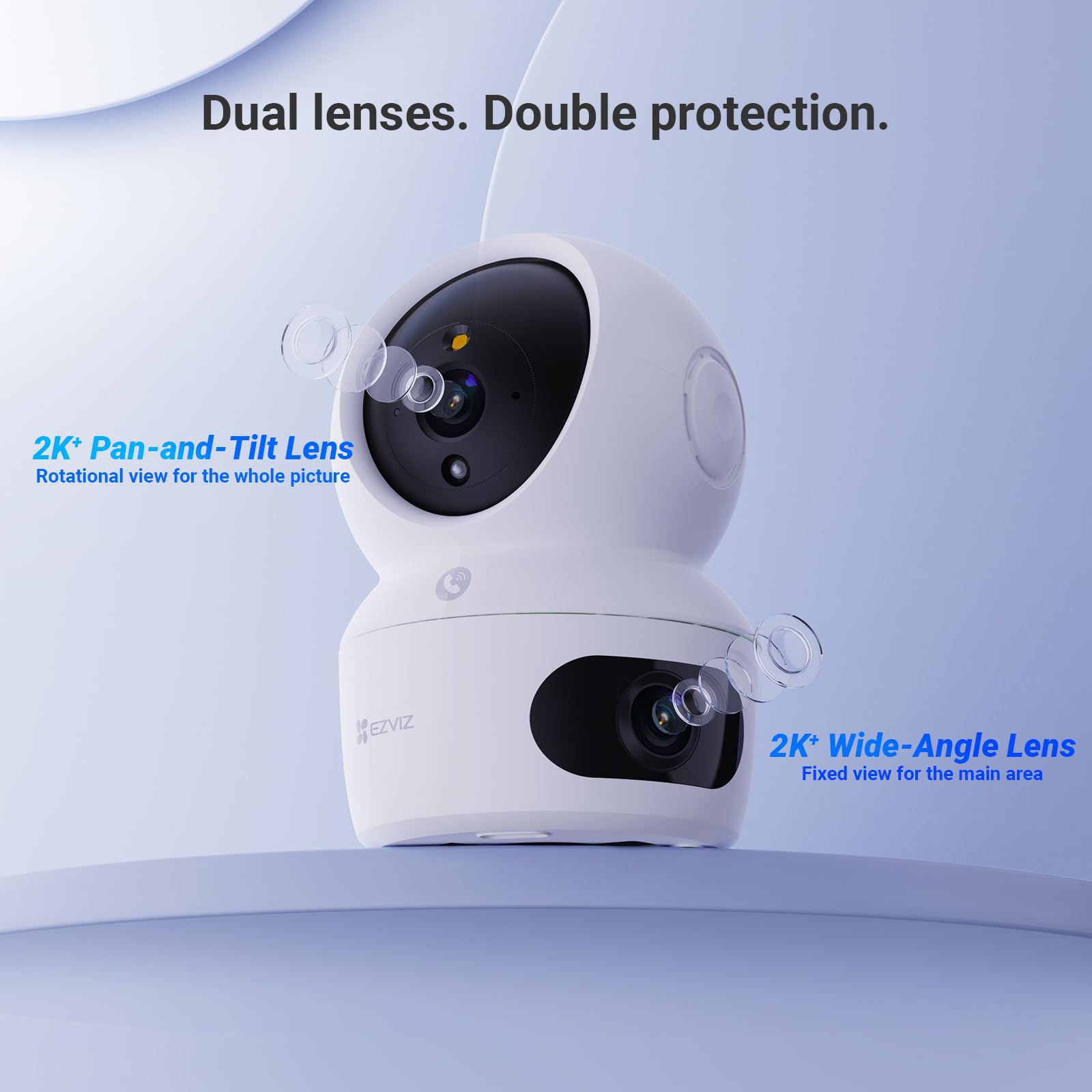

| Fixed Lens | 2.8mm@F1.6 , view angle: 108°'Diagonal', 92° 'Horizontal', 50°'Vertical' |
| PT Lens | 6mm@F1.6 , view angle: 60°'Diagonal', 51° 'Horizontal', 28°'Vertical' |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
|
|
| Video Compression | H.264/H.265 |
| Video Bit Rate | Adaptive bit rate. |
|
|
| Smart Alarm | Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
| Wi-Fi Pairing | AP paring |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
|
|
| Max. Resolution | 2560 × 1440 |
| Frame Rate | Max:30fps; Self-Adaptive during network transmission |
|
|
| Storage | Micro SD card slot 'Max. 512G' |
| Power | TYPE-C |
| Wired Network | RJ45 X 1 '10M/100M self-adaptive Ethernet port' |
|
|
| Standard | IEEE802.11a, IEEE802.11b, 802.11g, 802.11n,802.11ac 802.11ax |
| Frequency Range | 2.4GHz: 2.4 GHz ~ 2.4835 GHz 5GHz: 5.15GHz~5.25GHz |
| Channel Bandwidth | 2.4GHz Supports 20MHz 5GHz Supports 80MHz |
| Security | WPA-PSK, WPA2-PSK, WPA3-Personal |
| Transmission Rate | 2.4GHz Max. Rate Support: 11b_11M?11g_54M, 11n_MCS7_20M?11ax_MCS11_20M 5.15-5.25GHz Max. Rate Support: 11a_54M, 11n_MCS7_20-40M?11ac_MCS9_20-40-80M, 11ax_MCS11_20-40-80M |
| Output Power'EIRP' | 20 dBm |
| Antenna Gain | 2.56dBi@2.48GHz?3.18dBi@5.22GHz |
|
|
| Operating Conditions | -10°C to 45°C ' -14 °F to 113 °F ' Humidity 95% or less 'non-condensing' |
| Power Consumption | 8W max |
| Power Supply | DC 5V/2A |
| IR Range | MAX. 10 meters '32.81ft' |
| Dimensions | 88 × 88 × 131.5 mm '3.46 × 3.47 ×4.69 in' |
| Package Dimensions | 200 ×105 ×105 mm '7.87 × 4.13 × 4.13 in' |
| Net Weight | 270 g '9.52 oz' |
| Bare Weight | 499 g '17.60 oz' |
|
|
| In the box | - Camera 'x1' |
| - Power Adapter 'x1' | |
| - Power Cable 'x1' | |
| - Drill Template 'x1' | |
| - Mounting Plate 'x1' | |
| - Screw Kit 'x1' | |
| - Regulatory Information 'x1' | |
| - Quick Start Guide 'x1' | |
|
|
| Certifications | CE / UKCA / WEEE / RoHS / REACH / UL |
