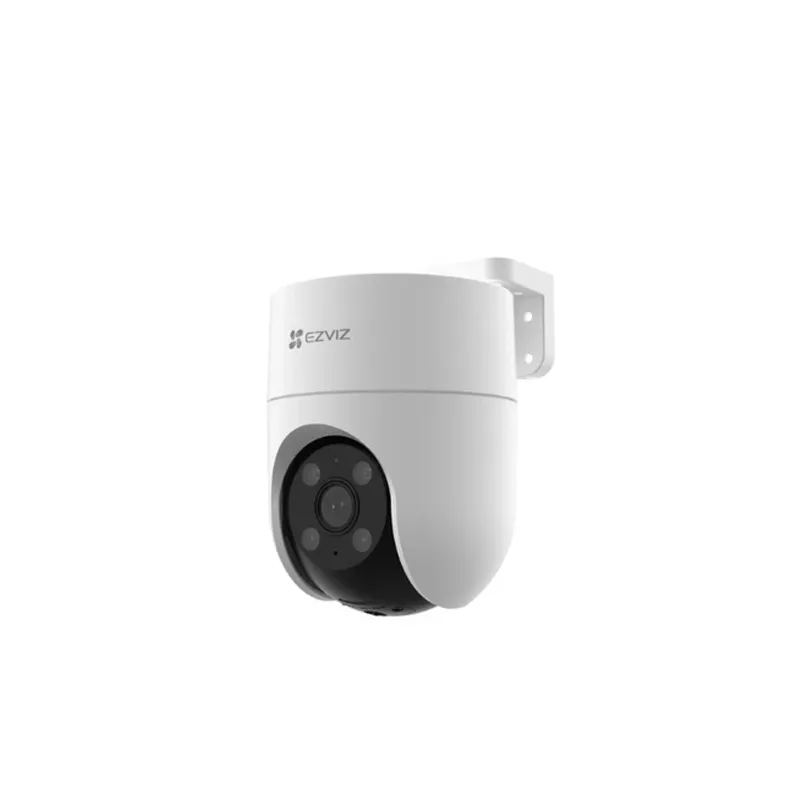

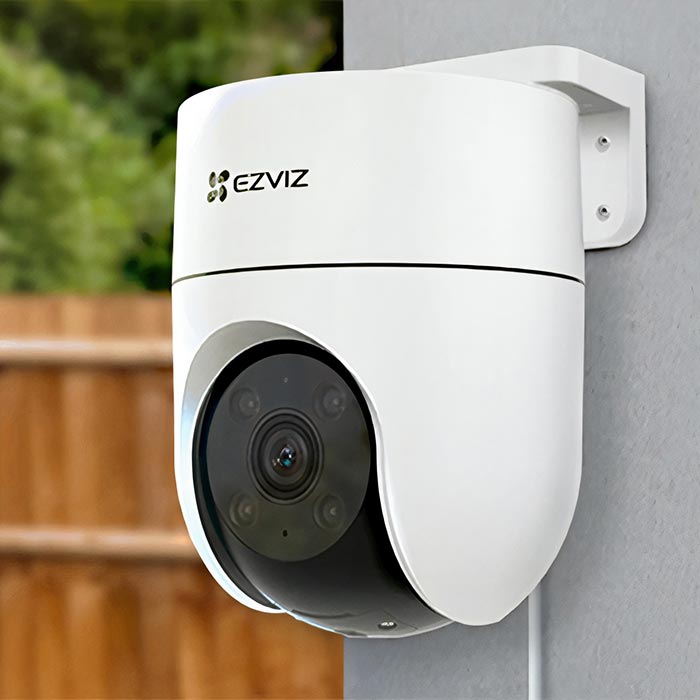

EZVIZ H8c 2K Pan & Tilt Wi-Fi Camera
Product # : 1130
|
|
|---|---|
| Model | CS-H8c '2K' |
|
|
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4mm@ F1.6, viewing angle: 46° 'Vertica', 89° 'Horizontal', 104° 'Diagonal' 6mm@ F1.6, viewing angle:28° 'Vertica', 52° 'Horizontal', 60° 'Diagonal' |
| PT Angle | Pan: 350°, Tilt: 80° |
| Minimum Illumination | 0.5 Lux @ 'F1.6, AGC ON', 0 Lux with IR 'Data is obtained from EZVIZ laboratories' |
| Lens Mount | M12 |
| Day & Night | IR-Cut filter with auto-switching |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Night Vision Distance | 30 m / 98 ft |
|
|
| Max. Resolution | 2304 × 1296 |
| Frame Rate | Max: 30fps; Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Quad HD; Full HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-Adaptive |
| Max. Bitrate | 3 Mbps |
|
|
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Transmission Rate | 11b: 11 Mbps,11g: 54 Mbps,11n: 72 Mbps |
| Wi-Fi Pairing | AP pairing |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wired Network | RJ45 × 1 '10M / 100M Adaptive Ethernet Port' |
|
|
| Local Storage | MicroSD card slot 'Up to 512GB' |
| Cloud Storage | EZVIZ Cloud Storage 'Subscription Required' |
|
|
| Smart Alarm | AI-Powered Human Shape Detection |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark |
| Preset Locations | Supports |
|
|
| Operating Conditions | -30 °C to 50°C ' -22 °F to 122 °F ', humidity 95% or less 'non-condensing' |
| IP Grade | Weatherproof Design |
| Power Supply | DC 12V / 1A |
| Power Consumption | MAX. 12W |
| Dimensions | 100.05 × 129.19 × 149.75 mm '3.94 × 5.09 × 5.9 inch' |
| Packaging Dimensions | 140 × 140 × 192 mm '5.51 × 5.51 × 7.56 inch' |
| Weight 'With package' | 745 g '26.28 oz' For EU Standard Version |
| Net Weight | 435 g '15.34 oz' |
|
|
| In the box | - H8c 2K Camera |
| - Drill Template | |
| - Screw Kit | |
| - Waterproof Kit | |
| - Power Adapter | |
| - Regulatory Information | |
| - Quick Start Guide | |
|
|
| Certifications | CE / FCC / UKCA / UL / WEEE / RoHS / REACH |
